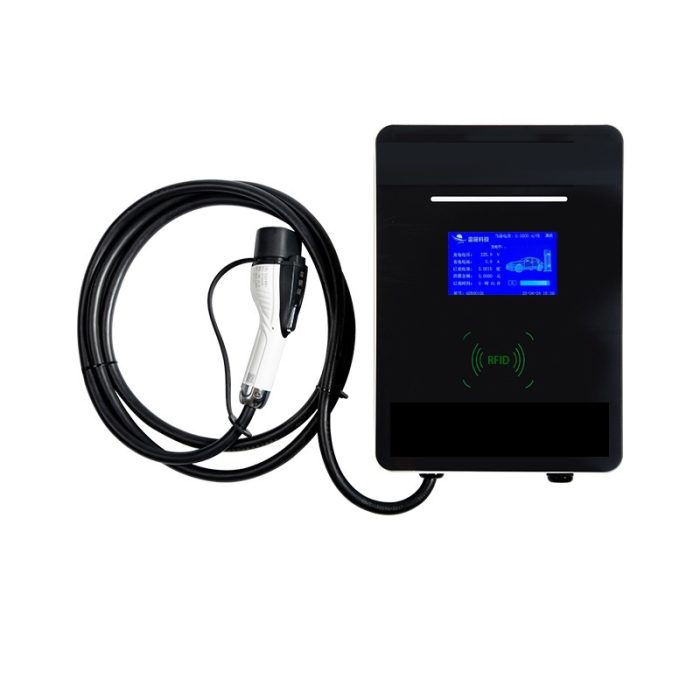

AC EV CHARGER LSEV SERIES
The product uses mainstream performance processors, with high stability, high-speed calculation control ability, and powerful system resources. It is more stable and reliable, with a small footprint and easy installation. The flat area and spatial volume occupied by the entire charging pile are both very reasonable, which improves space utilization and is easy to install and apply in areas with tight land supply.
Product Performance
1. Multiple protections: overvoltage, overcurrent, over-temperature, leakage protection, and other multiple protection functions make charging more stable;
2. Communication integration: 4G, WIFI, Bluetooth, and other communication methods;
3. Strong reliability: highly integrated design inside, with extremely low failure rate;
4. Full coverage: covering all charging power of passenger cars from 7~14kW;
5. Intelligence: reservation charging, remote program upgrade.
Product Features
Exquisite appearance, simple operation, and easy installation;
High efficiency, reliable and stable performance;
Friendly interaction interface, 4.3-inch LCD screen;
Support multiple charging modes;
Support card swiping/scanning/3G/4G communication;
Comprehensive overload protection;
Support online data upgrade.
Applicable Scenarios
Residential areas, private villas, commercial office buildings, industrial parks, enterprises and institutions, urban complex parking lots, urban public charging stations, new energy vehicles in 4S shops, workshop debugging areas, etc.
| Model No.
Technical Parameters |
LSEV-AC220/7 | LSEV-AC220/14 | |
| Category | Part | 7KW EV Charger | 14KW EV Charger(Dual Gun) |
| AC Input | AC Input Voltage Range (v) | AC220V | |
| Frequency Range (Hz) | 50～60HZ | ||
| AC Output | Output Voltage (v) | AC220V | |
| Output Power (KW) | 7 | 2*7 | |
| Maximum Output Current (A) | 32 | 2*32 | |
| Charging Gun Length (M) | 5 | ||
| Charging Function | Charging Object | On-board Charger | |
| Charging Method | AC CHARGING | ||
| Other Device Information | Human-computer Display | 4.3-inch Color Screen | |
| Charging Operation | Plug&Play/Card Swipe/APP | ||
| LED Operating Indicators | Power/Charging/Fault | ||
| Communication Method | Bluetooth/WIFI/4G(Optional) | ||
| Heat Dissipation Control | Natural Cooling | ||
| Protection Level | IP54 | ||
| Dimensions (W*D*H)mm | 250*150*350 | ||
| Operating Environment | Altitude (m) | ≤2000 | |
| Operating Temperature (c°) | -20～+50 | ||
| Storage Temperature (c°) | -40～+70 | ||
| Average Relative Humidity | 5%～95% | ||
| Protection Function | Emergency stop protection, overcurrent protection, overvoltage protection, high temperature protection, short circuit protection, lightning protection, grounding protection | ||
| Intsallation | Wall-mounted , Column-Mounted | ||
