AC PORTABLE EV CHARGER

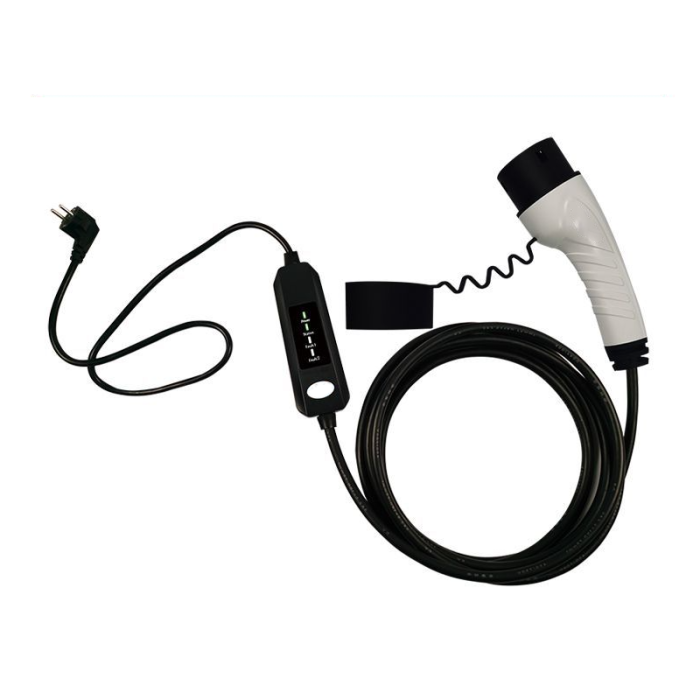

Portable charger is a portable 3.5KW low-power charging device. It allows vehicles to be charged anytime and anywhere for daily or emergency charging. Users only need to plug the charger’s plug into the power supply, and the charging gun head into the electric vehicle’s charging interface to start charging. The supply power socket is single-phase 16A and can be easily used in places where there is electricity. The portable charger has characteristics such as electricity protection, waterproof, dustproof, and compression resistance. Its compact design allows it to be carried with the car. The charging process has complete protection functions, and it is safe and reliable. It can provide emergency charging for car owners.
Description
| Model No.
Technical Parameters |
LS-EVC-035-00112 | |
| Category | Part | 3.5KW Mini EV Charger |
| AC Input | AC Input Voltage Range (v) | AC220V |
| Frequency Range (Hz) | 50HZ | |
| AC Output | Output Voltage (v) | AC220V |
| Output Power (KW) | 3.5 | |
| Maximum Output Current (A) | 16A | |
| Charging Gun Length (M) | 5(Default) | |
| Charging Function | Charging Object | On-board Charger |
| Charging Method | AC CHARGING | |
| Charging Mode | Plug and Charging | |
| Other Device Information | Operating Indicators | Power/Charging/Fault |
| Human-computer Display | N/A | |
| Heat Dissipation Control | Natural Cooling | |
| Protection Level | IP54 | |
| Intsallation | Portable | |
| Dimensions (W*D*H)mm | 95*225*90 | |
| Operating Environment | Altitude (m) | ≤2000 |
| Operating Temperature (c°) | -20～+50 | |
| Storage Temperature (c°) | -20～+50 | |
| Average Relative Humidity | 5%～95% | |
| Protection Function | Overcurrent protection, overvoltage protection, high temperature protection, short circuit protection, lightning protection | |
