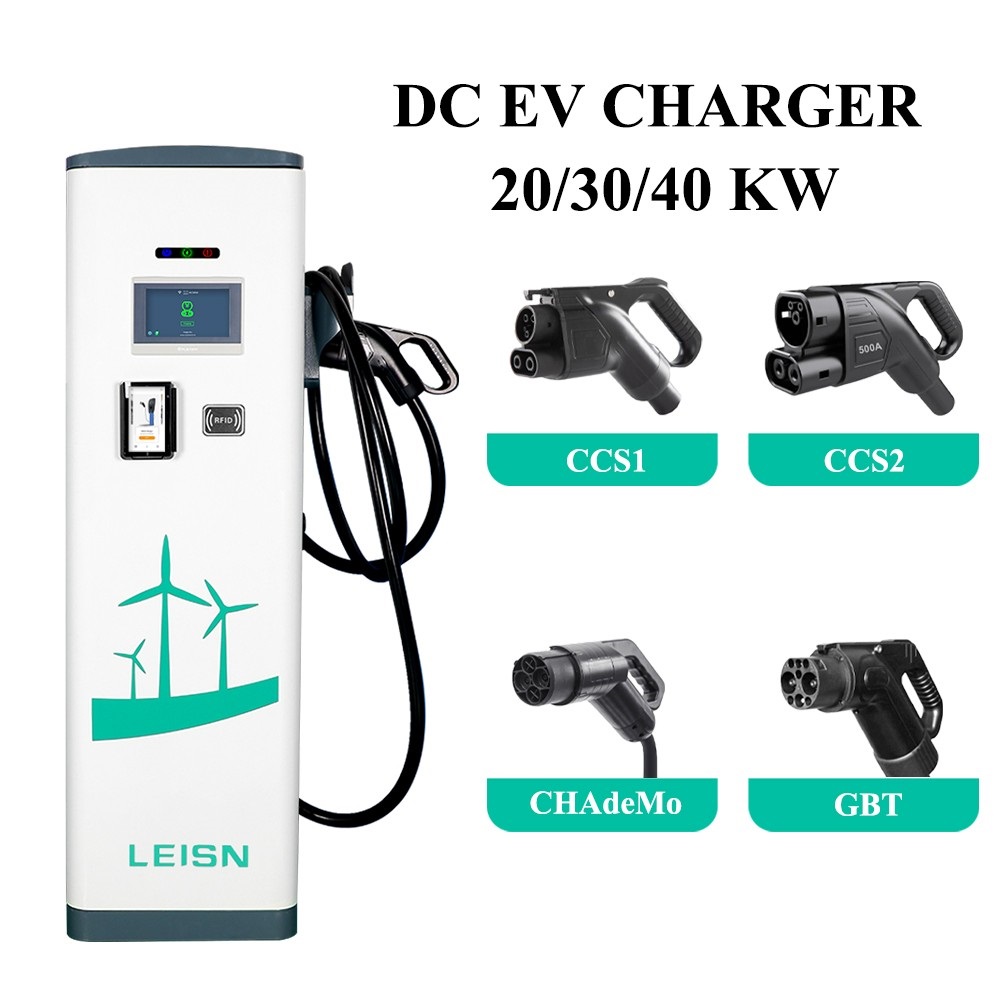

DC EV CHARGER LSEV-DC750 SERIES
DC charging station,the overall design full considers the heat dissipation,noise control,and protection level of the charging module.It adopts isolated forced air cooling to achieve the best heat dissipation effect.The drop-type fan design effectively prevents water vapor and dust from entering the power module It uses independently developed high-performance core control board and power supply module.The monitoring unit adopts a distributed control method to reduce risk and improve reliability.
Description
| Product Description: | |
| DC charging station,the overall design full considers the heat dissipation,noise control,and protection level of the charging module.It adopts isolated forced air cooling to achieve the best heat dissipation effect.The drop-type fan design effectively prevents water vapor and dust from entering the power module It uses independently developed high-performance core control board and power supply module.The monitoring unit adopts a distributed control method to reduce risk and improve reliability. | |
| Product Performance: | |
| 1.Full coverage:wide voltage platform,wide constant power range,can cover various types of vehicles. 2.Multiple protections:multiple protection functions make charging more stable. 3.Modular design:high fault-tolerant rate with modular design. |
|
| 4.Easy installation:simple and fast installation and disassembly,enjoying cloud installation services. 5.Strong reliability:high conversion efficiency and stable output current. 6.Intelligence:remote program upgrade and fault diagnosis. |
|
| Product Features: | |
| Exquisite appearance,simple operation,and easy installation; High efficiency,reliable and stable performance; |
|
| Friendly interaction interface,equipped with a 7-inch color touch screen; | |
| Supports various communication methods such as Ethernet,4G,WIFl,and Bluetooth Comprehensive overload protection; |
|
| Supports onlinedata uparade. | |
| Model | LSDC-20D | LSDC-30D | LSDC-40D | |
| Piture | ||||
| Input Characteristic |
Input Voltage | 260-480VAC | ||
| Input Frequency | 50/60Hz | |||
| Stand-by consumption | <30W | |||
| DC Output Characteristic |
Numberof Charging Cable | CCS2×1 /GBT x1 | ||
| Charging Mode | Mode 4 | |||
| 0utput Voltage | 150-750V DC | 150-1000V DC | ||
| Max.Output power | 20KW | 30kw | 40kw | |
| Output Current | 0~50A DC | 0~100A DC | 0~130A DC | |
| Power Factor | ≥0.99 | |||
| Meeting Accuracy | 0.5m | |||
| Cable Length | 5m | |||

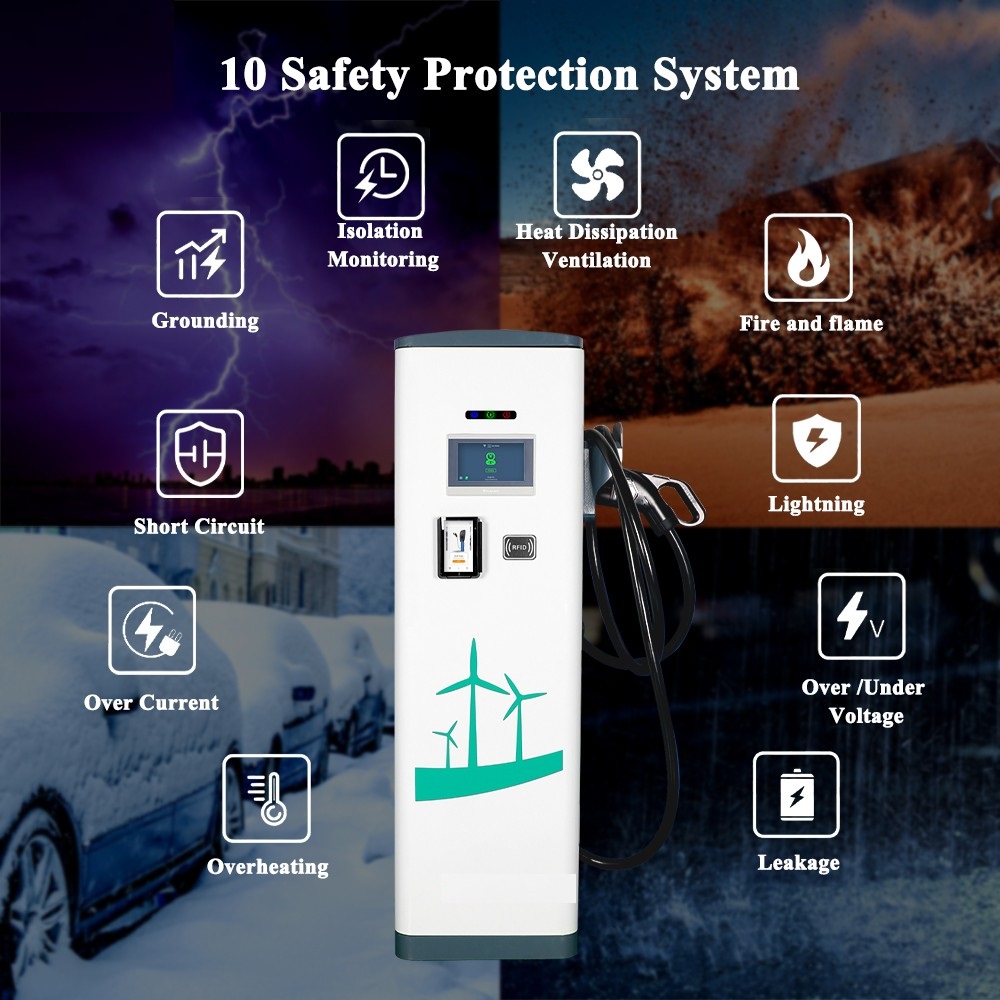

| Protection | 0ver voltage protection | |||
| Under voltage protection | ||||
| 0ver load protection | ||||
| Shortcircuit protection | √ | √ | ||
| 0ver-temp protection | ||||
| Surgeprotection | ||||
| TypeB RCBO | Optiona | |||
| Connectivity | Communications protocol | 0CPP1.6J | ||
| Ethernet connection | ||||
| 4G | 0ptional | |||
| RFID | ||||
| QR code | √ | √ | ||
|
Function& Accessory |
Touch display 7″ | |||
| LED indicator light | √ | √ | ||
| Emergency stop button | ||||
| Working Environment | Protection degree | IP54 | ||
| Working Temperature | -20℃~+55℃ | |||
| Storage Temperature | -20°℃~+55°℃ | |||
| Cooling Method | Forced Air-Cooling | |||
| Operating Humidity | <95%Non-Condensing | |||
| Acoustic Noise | <60dB | |||
| Payment | POS machine | 0ptional | ||
| Mobile APP | ||||
| RFID | √ | |||
