DC EV CHARGER LSEV-DC750 SERIES
DC charging station,the overall design fully considers the heat disipation,noise control,and protection level of the charging module.It adopts isolated forced air cooling to achieve the best heat dissipation effect.The drop-type fan design effectively prevents water vapor and dust from entering the power module It uses independently developed high-performance core control board and power supply module.The monitoring unit adopts a distributed control method to reduce risk and improve reliability.
| Product Performance: | |
| 1.Full coverage:wide voltage platform,wide constant power range,can cover various types ofvehicles.
2.Multiple protections:multiple protection functions make charging more stable. 3.Modular design:high fault-tolerant rate with modular design. |
|
| 4.Easy installation:simple and fast installation and disassembly,enjoying cloud installation services.
5.Strong reliability:high conversion efficiency and stable output current. 6.Intelligence:remote program upgrade and fault diagnosis. |
|
| Product Features: | |
| Exquisite appearance,simple operation,and easy installation;
CHigh efficiency,reliable and stable performance; |
|
| Friendly interaction interface,equipped with a 7-inch color touch screen; | |
| Supports various communication methods such as Ethernet,4G,WIFl,and Bluetooth
Comprehensive overload protection; Supports onlinedata upgrade. |

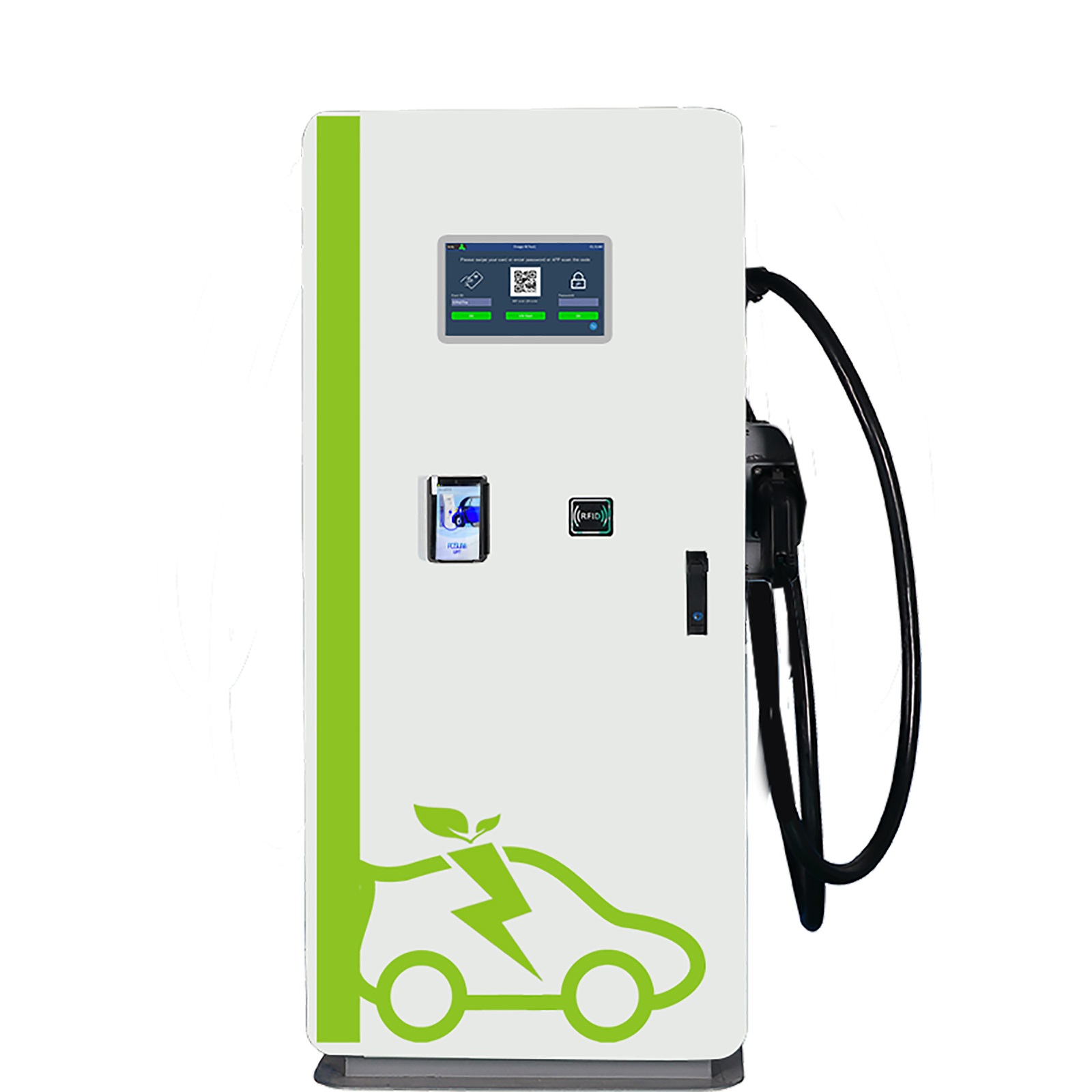

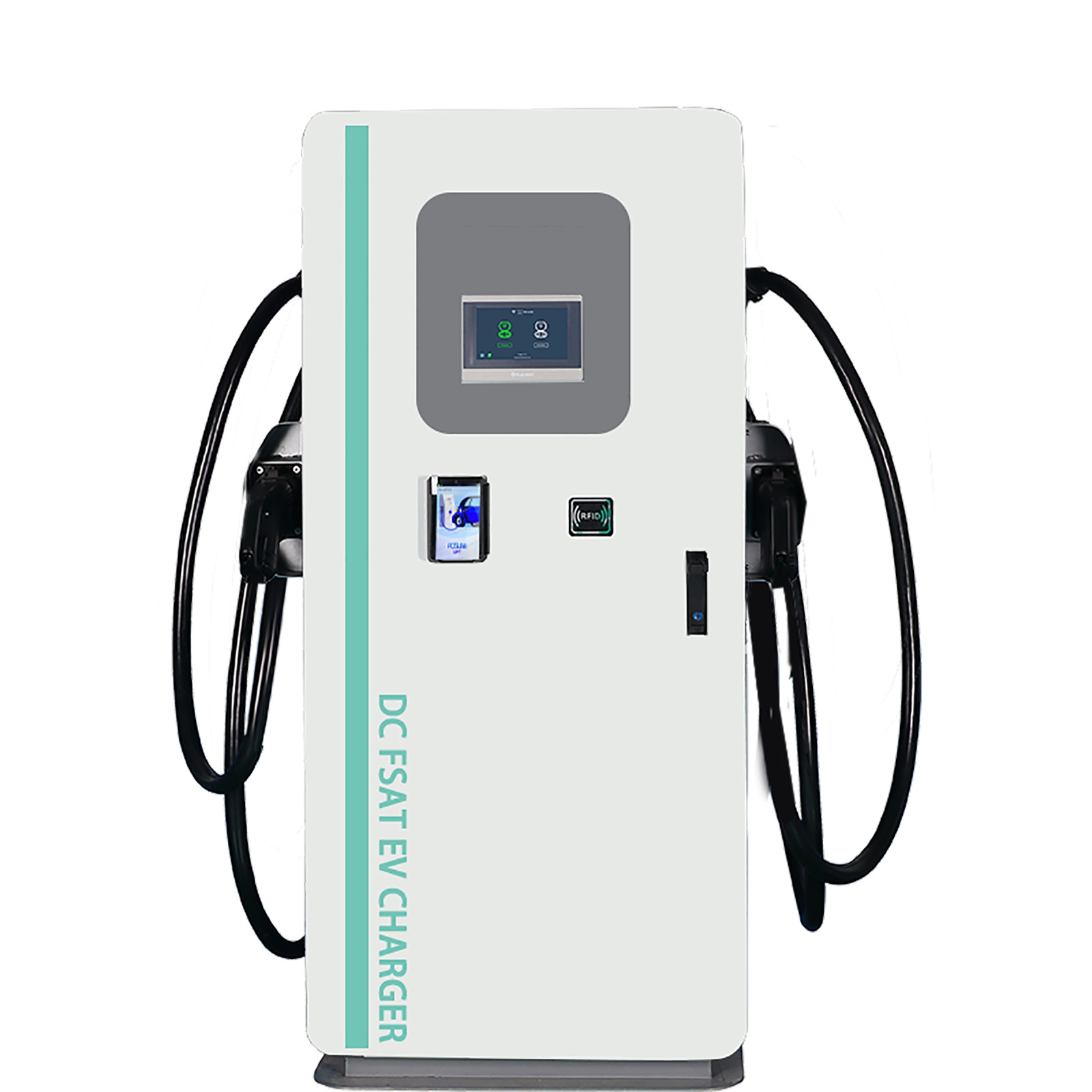

| Model | LSDC-60D | LSDC-60S | LSDC-80D | LSDC-80S | |
| Piture | |||||
| Input Characteristic |
Input Voltage |
260-480V AC | |||
| Input Frequency |
50/60Hz | ||||
| Stand-by consumption | <30W | ||||
| DC Outpu Characteristic |
Number of Charging Cable |
cCS2×1 | cCS2×2 | CCS2×1 | CCS2×2 |
| Charging Mode | Mode 4 | ||||
| Output Voltage | 150-1000V DC | ||||
| Max.Output power | 60KW | 80kw | |||
| Output Current | 0~200A DC | 0~200A DC | 0~200A DC | 0~200A DC | |
| Power Factor | ≥0.99 | ||||
| Meeting Accuracy | 0.5m | ||||
| Cable Length | 5m | ||||
| Protection | Over voltage protection | √ | √ | √ | √ |
| Under voltage protection | √ | √ | √ | √ | |
| Over load protection |
√ | √ | √ | √ | |
| Short circuit protection |
√ | √ | √ | √ | |
| Over-temp protection |
√ | √ | √ | √ | |
| Surge protection | √ | √ | √ | √ | |
| TypeB RCBO | Optional | ||||
| Connectivity | Communications protocol |
OCPP1.6J | |||
| Ethernet connection |
√ | √ | √ | √ | |
| 4G | Optional | ||||
| RFID | √ | √ | |||
| QR code | √ | √ | √ | √ | |
| Function& Accessory |
Touch display 7” | √ | √ | √ | √ |
| LED indicator light | √ | √ | √ | √ | |
| Emergency stop button | √ | √ | √ | √ | |
| Working Environment | Protection degree | IP54 | |||
| Working Temperature | -20°℃ ~+55°℃ | ||||
| Storage Temperature | -20°℃~+55°℃ | ||||
| Cooling Method | Forced Air-Cooling | ||||
| Operating Humidity | ≤95%Non-Condensing | ||||
| Acoustic Noise | <60dB | ||||
| Payment | POS machine | Optional | |||
| Mobile APP | √ | √ | √ | √ | |
| RFID | √ | √ | √ | √ | |
